Features:
- Power: 7.2kW
- Volts: 240V
- Phase: Single
- Amperage: 30
- Recommended Wire Size: 10 (provided)
- GPM Turn On: 0.3
- Minimum Operating Temp: N/A
- Max Operating Temp: 140
- Minimum Operating Pressure: 25 PSI
- Max Pressure Rating: 150 PSI
- Increase deliverable hot water up to 45%
- Compact design
- Digital User Interface
- Vacation Mode, Eco Mode, and Freeze Protection
- Install on an Electric or Gas tank water heater
- Utilize existing power supply to electric tank heater
- Pigtail provided for tank connection
- 3/4'' female NPT inlet
- 3/4'' male NPT outlet
- ETL Certified UL499
Applications:
- Electric or gas tank water heater booster
Installation:

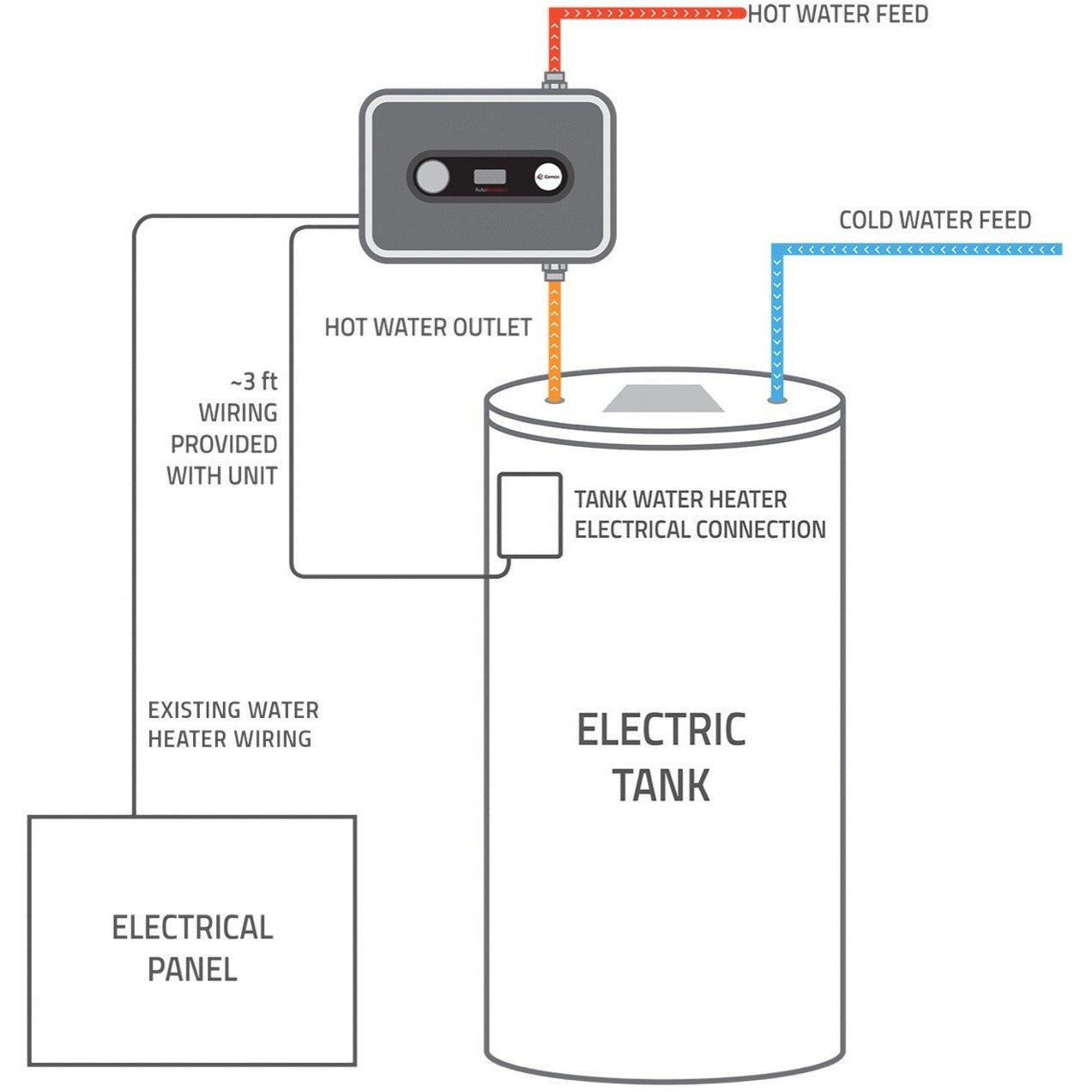

Mounting - This unit is designed to be installed on the tank outlet, but if space is limited the unit can be wall mounted
