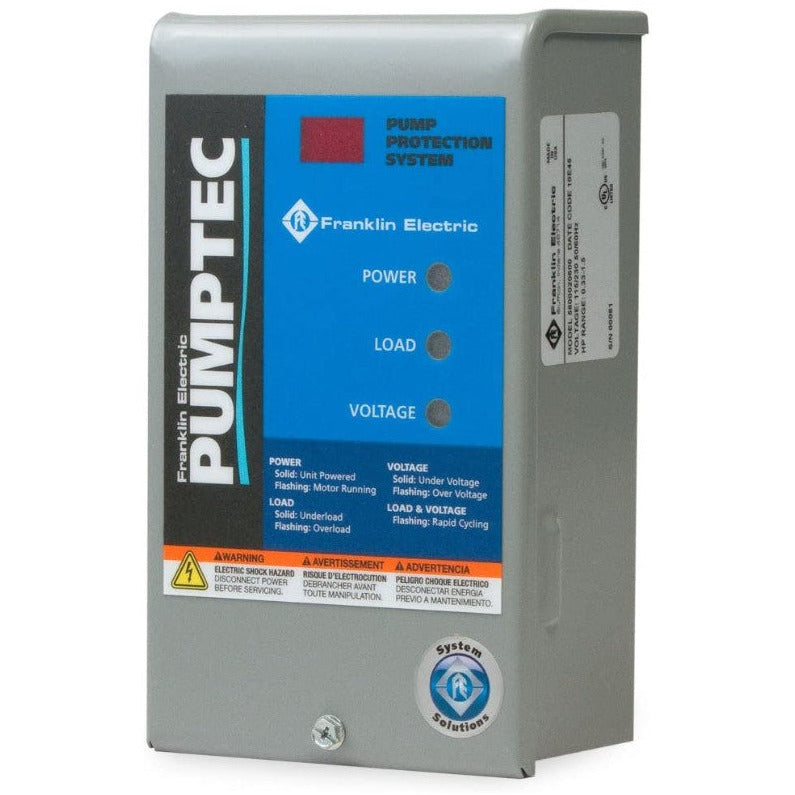

Franklin Electric 5800020610 Pumptec Motor Protection 115/230V - Water Pump Control for Residential & Agricultural Use

The facts are clear and so are the choices. Franklin Electric’s Pumptec family provides the high performance pump protection you need deep down in the well. Designed to monitor motor load and supply voltage and to shut down the pump to prevent damage, Pumptec family products protect your water system investment.

For 2- & 3-wire single-phase motors, 115/230V, 1/3 to 1.5 HP. Pumptec is a microcomputer-based pump protection device. The water well pump protection switch monitors motor load and power line conditions to provide protection against drywell conditions, waterlogged tanks, and abnormal line voltage conditions. This Pumptec well pump protection device interrupts power to the motor whenever the load drops quickly or below a preset level. Indicator lights on the cover provide complete system status.

Franklin Electric Pumptec Single Phase Protection Device Features

• Easily Adjustable Sensitivity Settings
• Run and Fault Indicator Lights
• Heavy Duty Relay
• Alarm Circuit Contacts
• UL/CSA Listed

• Protection Against
  • Air or Gas Locked Pump (Cavitation)
  • Broken Shaft or Coupling
  • Clogged Well Screen
  • Drop in Water Level
  • Faulty Check Valve
  • High Voltage
  • Low Voltage
  • Low Yield Wells
  • Rapid Cycling
  • Water Logged Tank
  • Worn Pump Parts

• 1/3 to 1.5 HP Motor Protection
• 115/230V
• 40 to 90% SFL Sensitivity Adjustment
• +10% Overvoltage Trip
• -10% Undervoltage Trip
• 2 to 120 Minute Adjustable Reset Timer
