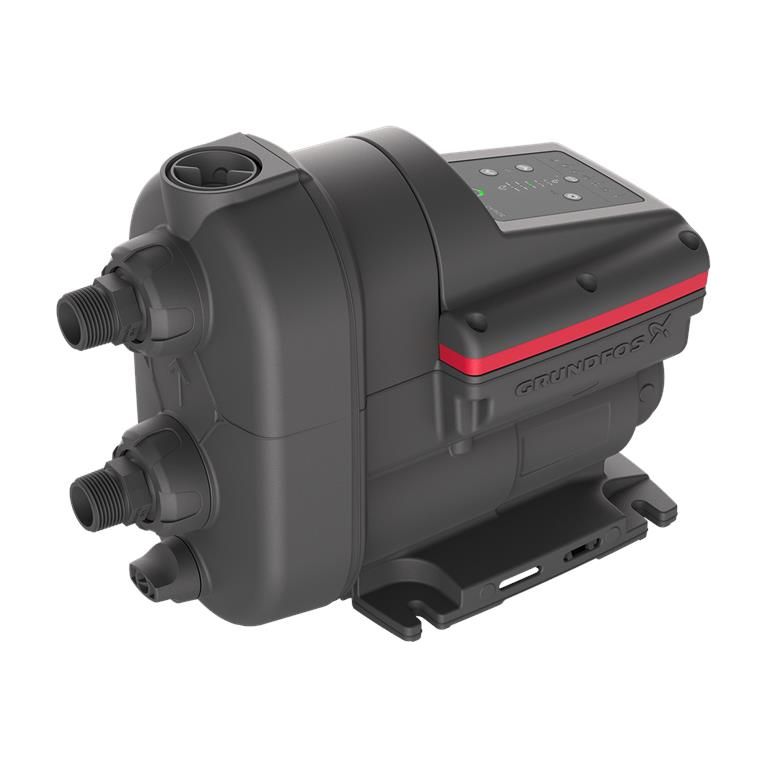

Grundfos SCALA2 3-45 93013250 Single Phase 230V Water Booster Pump with US Plug - Perfect for Home Water Pressure Boosting and Irrigation Systems
$504.2
$916.74
-45% OFF
Free shipping on all orders over $50
7-15 days international
7 people viewing this product right now!
30-day free returns
Secure checkout
72740416
Guranteed safe checkout
Description

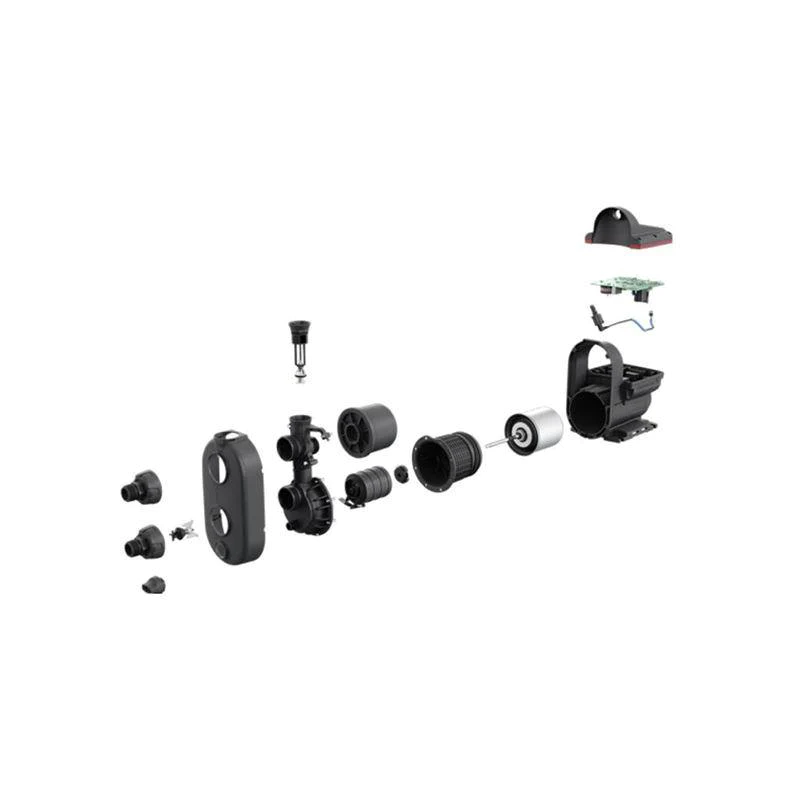

SCALA2 is a fully integrated water booster pump providing perfect water pressure in up to 8 taps—even with multiple taps and showers running at the same time. It packs pump, motor, tank, sensor, drive and non-return valve into one compact unit. And with its intelligent pump control, SCALA2 automatically adjusts performance to both inlet pressure and water consumption in the home. Thanks to a water-cooled motor, SCALA2 even offers one of the lowest noise levels of any booster on the market.
SCALA2 features a built-in sensor, which constantly measures the discharge pressure. If the pressure drops below the desired level, SCALA2 boosts its operation immediately to compensate for the loss of pressure. We call it intelligent pump control and the result is perfect water pressure.
SCALA2 3-45 | 1 | 208-230 | 60 | 550 | US plug 230V | NPT(M) | 1 | NPT(M) | 1 |
Features
- Perfect water pressure: Intelligent pump control adjusts operation automatically
- Low noise: 44 dB(A) in typical use
- Easy selection: One variant for all residential boosting needs
- Easy installation: Compact, all-in-one solution, plug-and-pump
- Easy to operate: User-friendly control panel
- Reliable operation: Dry-running protection, anti-cycling
- Long lifetime: Quality-tested to perfection, maintenance-free
- Highly efficient with ECM motor
- Self priming and suitable for both indoor and outdoor applications
Product name
SCALA2 3-45
Product No.
93013250
EAN
5715122954951
Price
Technical
Rated flow
13.2 US gpm
Maximum flow
20.3 US gpm
Rated head
88.59 ft
Maximum head
147.6 ft
Primary shaft seal
Carbon/Ceramic
Approvals
cULus
Approvals for drinking water
cULus NSF372,cULus DW NSF61
Curve tolerance
ISO9906:2012 3B
Model
2
Max. pump speed
5200 rpm
Materials
Pump housing
Composite
NORYL FE1630PW PPE+PS-GS30
Impeller
Composite
NORYL FE1630PW PPE+PS-GS30
Material code
A
Installation
Range of ambient temperature
32 .. 113 °F
Maximum operating pressure
145.04 psi
Maximum permissible inlet pressure
87 psi
Pipe connection standard
ANSI B1.20.1
Type of inlet connection
NPT(M)
Type of outlet connection
NPT(M)
Size of suction port
1 inch
Size of outlet port
1 inch
Liquid
Pumped liquid
Water
Liquid temperature range
32 .. 113 °F
Selected liquid temperature
68 °F
Density
62.29 lb/ft³
Electrical data
Power input P1
550 W
Rated power - P2
0.603 HP
Main frequency
60 Hz
Rated voltage
1 x 208-230 V
Minimum current consumption
0.01 A
Maximum current consumption
2.8 A
Enclosure class (IEC 34-5)
XX
Enclosure type
3
Insulation class (IEC 85)
F
Length of power cable
6.56 ft
Power plug
US plug 230V
Controls
Type of connector
NEMA 6-15
Others
Net weight
21.2 lb
Gross weight
26.4 lb
Shipping volume
1.52 ft³
Sales region
United States
Storage temperature range
-40 .. 158 °F
Country of origin
RS
Custom tariff no.
8413.70.2040
