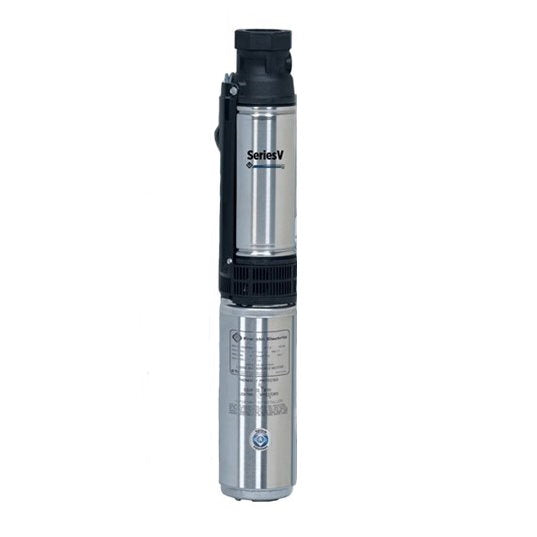

Franklin Electric 25FV1S4 3W230 1 HP 4" Submersible Stainless Steel Well Pump & Motor - 25 GPM, 230V, 3-Wire - Ideal for Residential Water Wells, Irrigation, and Farm Use

The standard Franklin 25FV1S4-3W230 #95422545 FPS Series V submersible pump features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives. Discharge and motor brackets are available in thermoplastic or stainless steel with a removable check valve system. Available in 5, 7, 10, 15, 20, and 25 gpm, 1/2 - 5 horsepower. The discharge head and motor bracket produced with industry proven, engineered materials. Available in 300 series stainless steel or high quality thermoplastic resins.

• 6 performance ranges: 5, 7, 10, 15, 20, and 25 gpm.
• Horsepower ranges: 1/2 - 5.
• Discharge head and motor bracket produced with industry proven, engineered materials. Available in 300 series stainless steel or high quality thermoplastic resins.
• Large wrench flat area on the discharge head for ease of installation.
• Dry run designed top bearing positively supports the 300 series stainless steel 7/16-inch hex shaft.
• Removable internal check valve.
• Powered by Franklin Electric corrosion-resistant super stainless 4-inch submersible motors with lightning protection.
• Maximum water temperature with proper flow is 120 °F/49 °C. Consult factory for details.

1 Discharge Head: Available in engineered polymer or stainless steel

2 Check Valve: Internal design, but easily removed with proper tools

3 Top Bearing: Designed to provide excellent protection in volatile “dry run” conditions

4 Shell: 300 Series stainless steel

5 Stage Assembly: Modified PPO with 300 Series stainless steel insert

6 Carbon/Phenolic Washer: Maintains stage integrity and hydraulic seal by absorbing impeller thrust

7 Pump Shaft: 300 Series stainless steel

8 Motor Shaft Coupling: 300 Series stainless steel

9 External Suction Screen: Minimizes entry of performance-robbing abrasives and debris

10 Motor Bracket: Available in stainless steel or thermoplastic
