Franklin Electric 2445089003GS 2W (1HP, 230V, 60Hz) FPS 4 Submersible Motor - Ideal for Deep Well Pumps, Agricultural Irrigation & Industrial Water Systems

Franklin Electric 2W (1HP,230,60,W)  #2445089003GS FPS 4" Submersible Motor, 1-phase, 2-wire, 1hp, 230v, 60 Hz, Water Well Construction

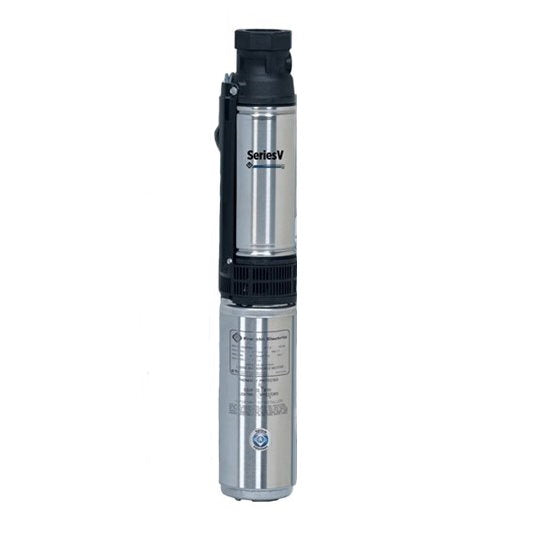

The standard Schaefer Series V submersible pump features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives. Discharge and motor brackets are available in thermoplastic or stainless steel with a removable check valve system. Available in 5, 7, 10, 15, 20, and 25 gpm, 1/2 - 5 horsepower. For details on how to become a registered dealer and receive a 5-year warranty, contact your local distributor.

• 6 performance ranges: 5, 7, 10, 15, 20, and 25 gpm.
• Horsepower ranges: 1/2 - 5.
• Discharge head and motor bracket produced with industry proven, engineered materials. Available in 300 series stainless steel or high quality thermoplastic resins.
• Large wrench flat area on the discharge head for ease of installation.
• Dry run designed top bearing positively supports the 300 series stainless steel 7/16-inch hex shaft.
• Removable internal check valve.
• Powered by Franklin Electric corrosion-resistant super stainless 4-inch submersible motors with lightning protection.
• Maximum water temperature with proper flow is 120 °F/49 °C. Consult factory for details.
